ESB 500 Drilling unit for cross corner brackets Fast drilling of cross corner brackets on frame



ESB 500 | Drilling unit for cross corner brackets

Fast drilling of cross corner brackets on frame with display

Highlights

  • Simultaneous drilling of two cross corner brackets with identical bores
  • Two hydropneumatic drilling units with automatic height scanning
  • Pneumatic centering device
  • Element sizes up to 3000 mm
  • Large support table also to be used as a buffer
  • PLC-control for automatic process
  • Contact protection
  • Resistive, analog single-touch screen

Options

  • 6-spindle drilling head
  • Turning device for drilling in transom zone
  • X-positioning for second overlap dimension
  • Table extension
  • Safety guards

ESB 500

Take a look at the Urban solutions in the video: ESB 500 – Drilling unit for cross corner brackets

Switch to recordings

What else you should know

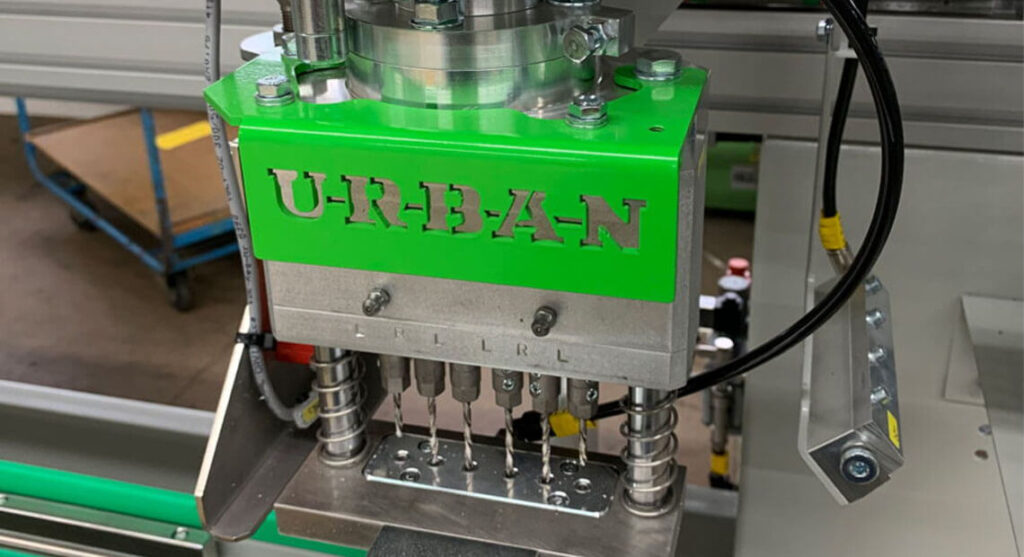

A compact solution...

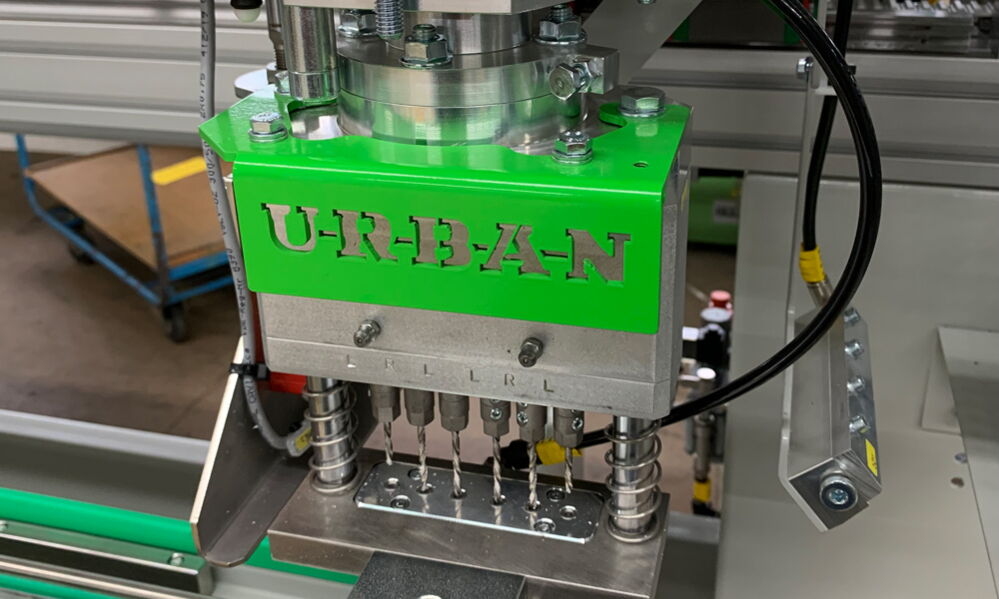

The 6-spindle drilling head with integrated scanning of profile heights and insides with blower device is the guarantee for highest process safety.

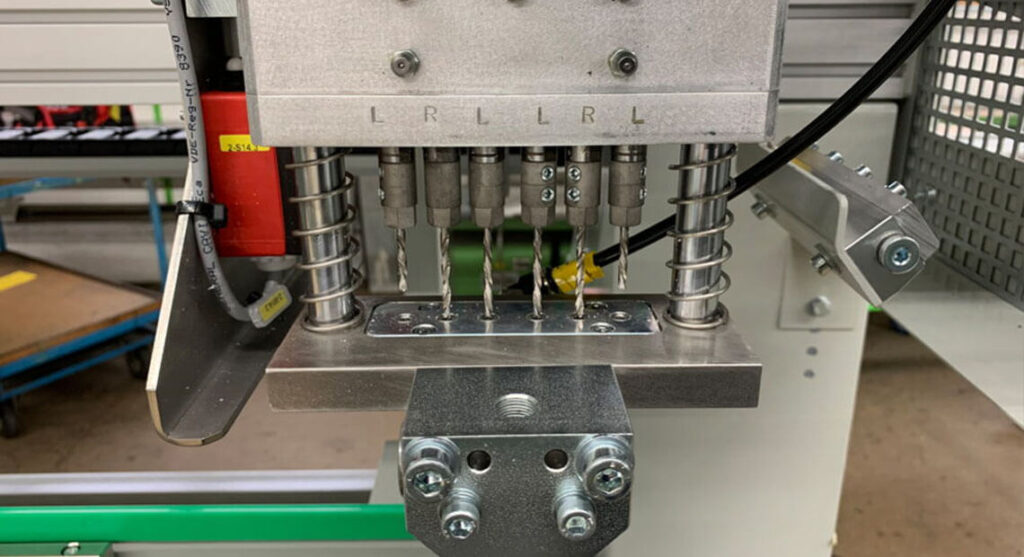

Ergonomic working...

The support table extension (optionally available) faciliates the hardware assembly considerably.

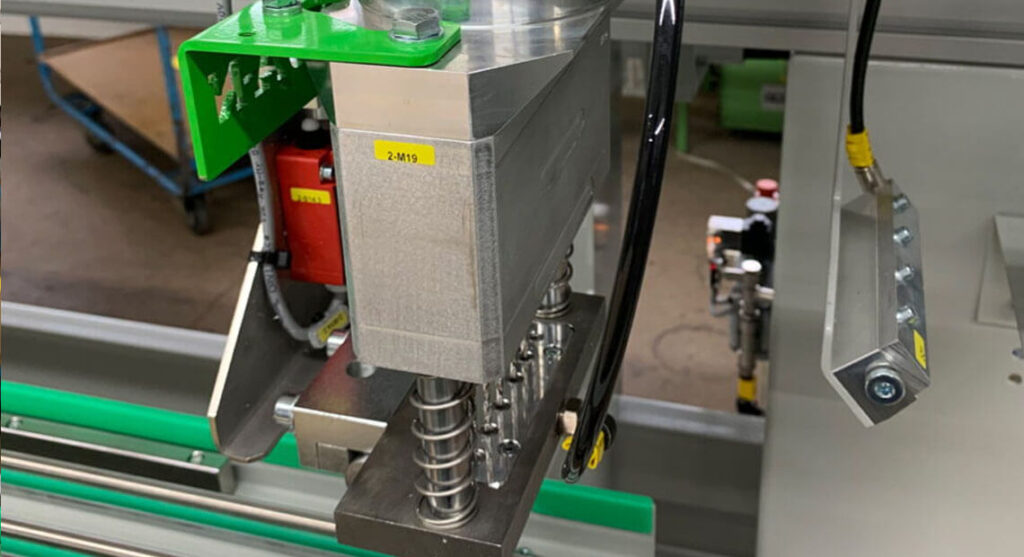

Efficiency...

Switchable drilling heads, turnable by 90°, for drilling in the transom zone can be handled easily via push button.
