FAS 250 sash assembly station - corner hinge drilling unit



FAS 250 | Sash assembly station

efficient assembly and screwing of mounts

Highlights

  • Pneumatic table inclination from 0° - 15°
  • Profile-protecting sliding or felt strips
  • Tilting pins for quick rotation and secure counterholding function
  • Smooth-running and stable guide block
  • Sash rebate dimension up to 2500 mm
  • Quick and accurate positioning of the screwing unit
  • Different screwing heights can be adjusted
  • Automatic screw feed

Options

  • Barcode laser scanner for screwing unit
  • Stainless steel support
  • Punch preparation or punch
  • Corner hinge drilling unit optionally with 2-spindle drill head
  • Assembly system for central and constant handle seat
  • Mounting shelf with 27 compartments

Hardware frames & sashes

Have a look at the Urban solutions in the video: Hardware frames & sashes

Switch to recordings

WHAT ELSE YOU SHOULD KNOW

____________

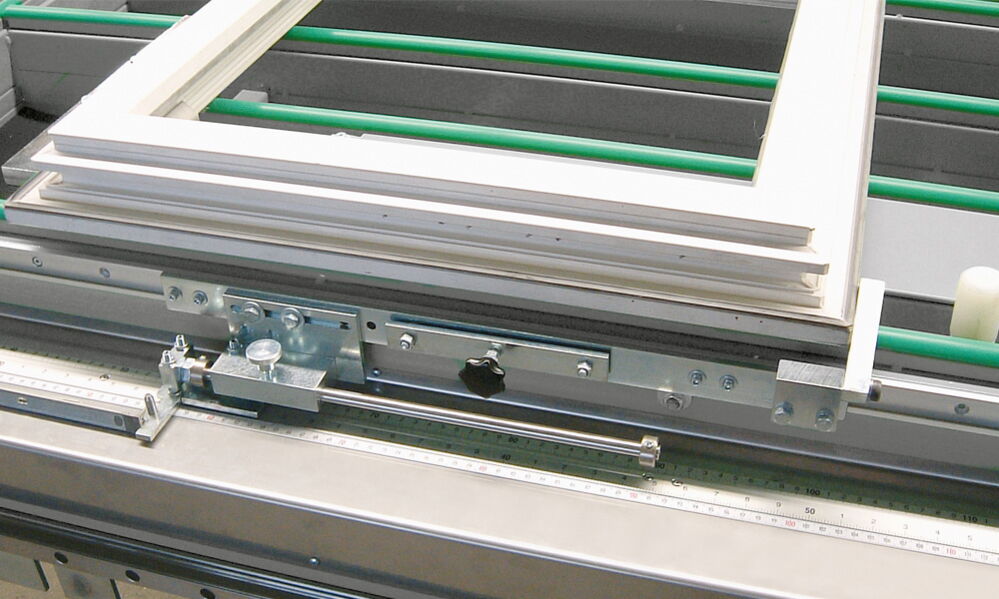

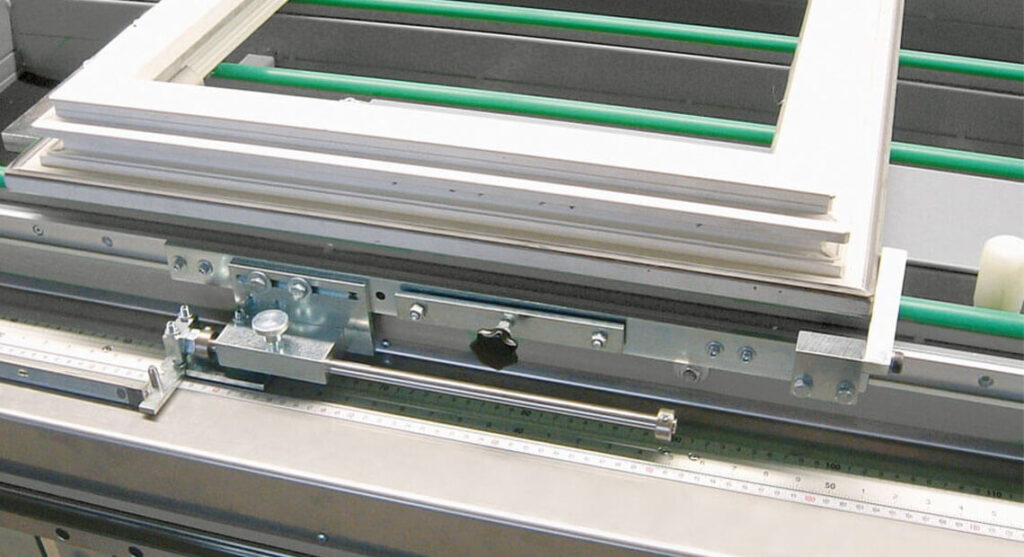

Maximum Precision

The assembly system for central or constant handle seat can be used for quick and accurate transfer of measurements from the sash.

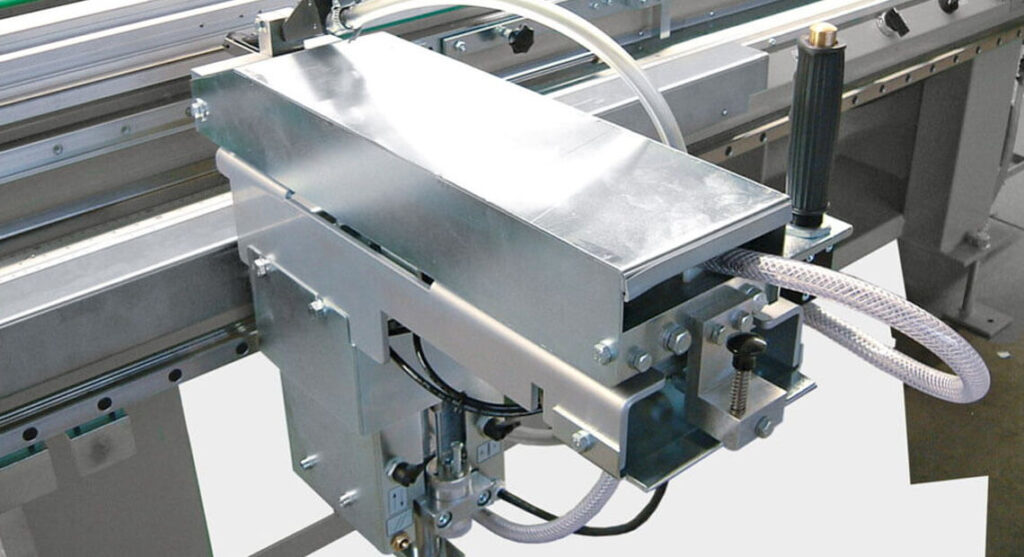

Streamlined manufacture

The automatic screwing sequence with depth switch-off and external feed device ensures a streamlined and flexible production.

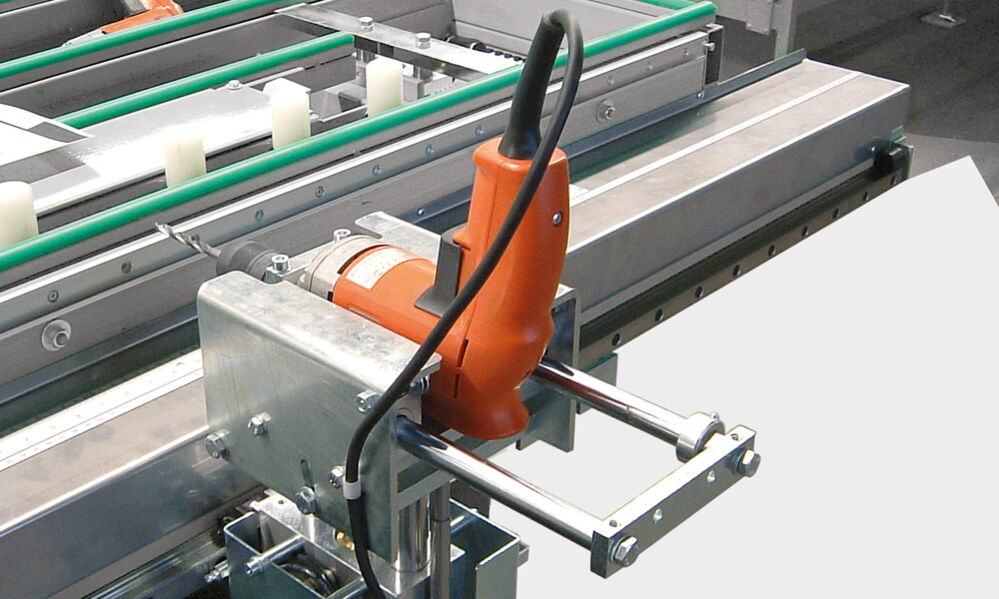

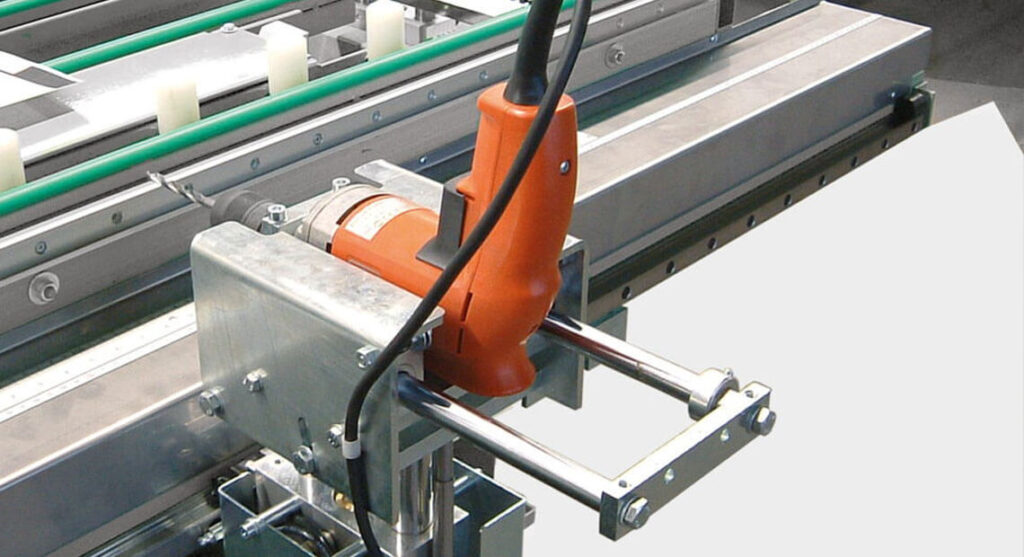

Precise bores

The corner hinge drilling unitincluding quick-clamp chuck guarantees precise and fast drilling of the holes for the  locating pins.
